Voltaic Cell with Eight Electrodes and a Porous Cup for Science Education

  • Sale
  • $ 50.50

A voltaic cell is ideal for demonstrating the characteristics of a primary cell. The cell's cup is clear so you can easily view the electro-chemical reactions taking place. The top rim is made of heavy molded plastic with a sturdy nickel plated clamp that holds both round and flat electrodes.

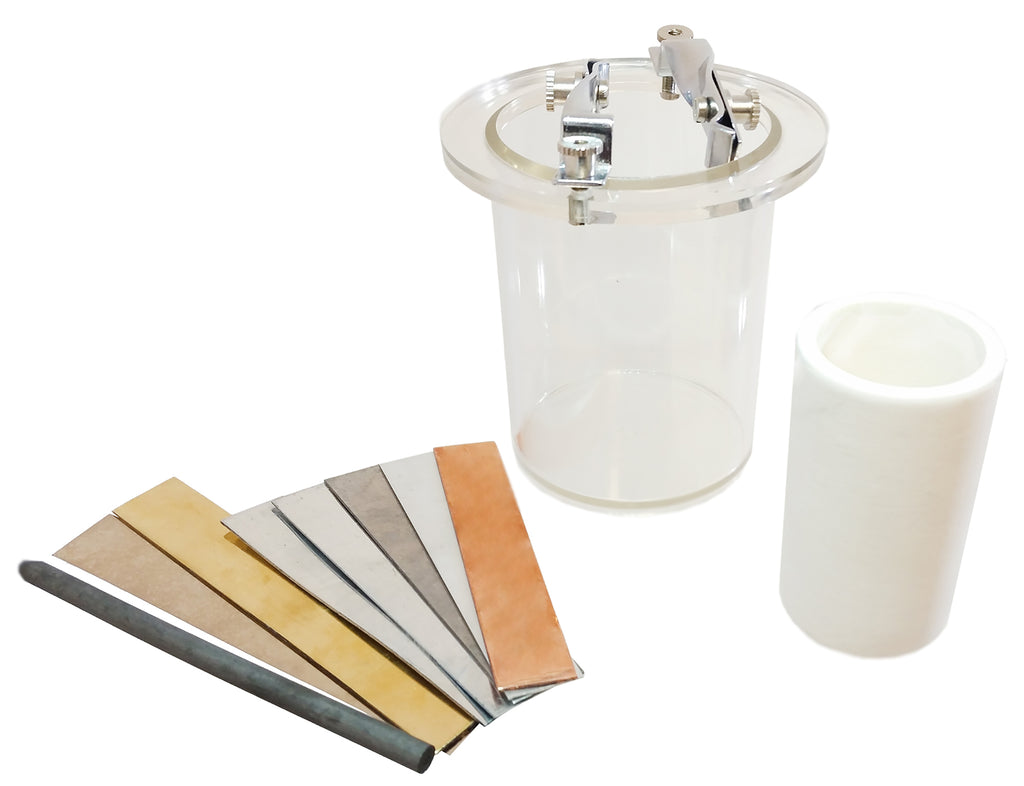

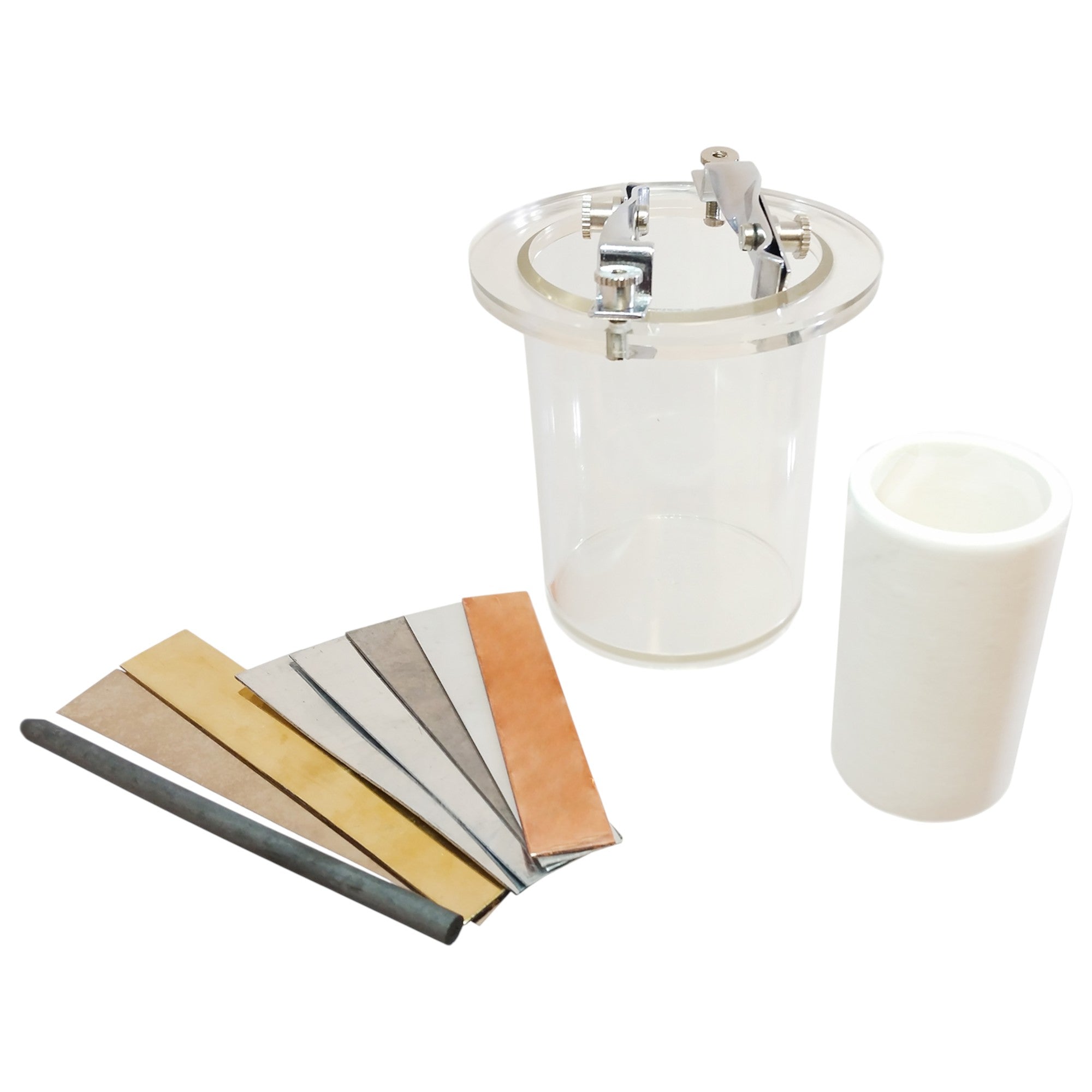

The Voltaic Cell with Eight Electrodes and a Porous Cup comes with the following electrodes: copper, aluminum, zinc, tin, brass, iron, nickel, and carbon. The included porous cup is used to create a dry cell battery. This can be done, for example, by filling the porous cup with a powdered MnO2 and NH4Cl mixture, placing it inside the plastic cup, filling the remaining space in the plastic cup with NH4Cl solution, and inserting a carbon rod electrode into the porous cup and a zinc electrode into the plastic cup. The porous cup is also sold separately as a replacement part.


WarningWARNING: This product can expose you to chemicals including styrene, nickel, and lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Our products are not toys. Use in a laboratory or educational setting only. Not for children 13 and under.
